Baja Designs LP9 Racer Edition LED Auxiliary Light Pod | Universal

SKU 330001
Original price $669.95 - Original price $679.95
Original price
$669.95 - $679.95
Current price $669.95

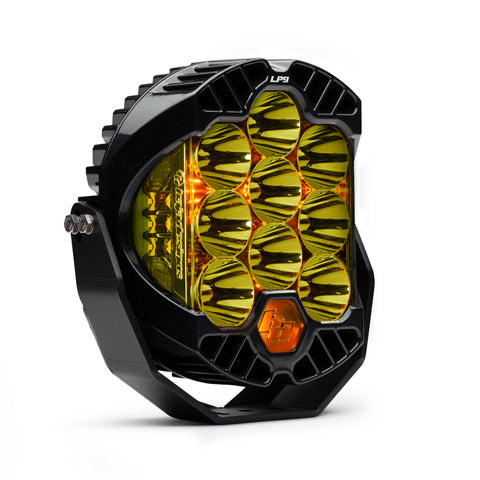

Though the design that was inspired by Baja Designs’ legendary 8-inch La Paz HID; The LP9 Racer Edition LED Pod features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes nine forward-projecting LEDS to produce 11,025 Lumens at 105 watts, and six LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT sports an incredible 200-degree spread of usable light. The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 easily takes care of all your lighting needs.

Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration perfect for the demands of high-speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.


Vehicle Fitment

Universal Fitment


May have lead time or ships from manufacturer
May have lead time or ships from manufacturer



Baja Designs Features

  • Satisfactions Guarantee: 30 Day Money Back Guarantee
  • Limited Lifetime Warranty: Complete Purchase Protection
  • uService®: Replaceable Lenses And Optics
  • ClearView®: All The Light, Right Where You Need It.
  • MoistureBlock™: Waterproof, Rain Proof, Submersible
  • CopperDrive®: Only LED Driven At 100%
  • 5000K Daylight: Less Driver Fatigue, Natural Color

  • LP9 Racer Edition LED Auxiliary Light Pod
  • Mounting Hardware

Specifications (Per Light)

  • Amperage Rating (A): 9.600
  • Average Rated Life (hr.): 49,930
  • Backlight Amperage Rating (A): 0.200
  • Backlight Wattage (W): 2.800
  • Beam Pattern: Racer Edition Spot
  • Bezel Material: Billet Machined Aluminum
  • Brightness (Lumens): 8374
  • Description: Racer Edition Spot; Clear
  • Housing Color: Black
  • Housing Material: Hard Anodized Machined Aluminum
  • Lighting Modes: Hardcoated Polycarbonate
  • Lens Material: High Beam/Low Beam/Day-Time Running Backlighting
  • Light Quantity: 1
  • Lighting Quantity: 9
  • Lighting Type LED
  • Lighting Technology: Forward Projecting
  • Mounting Hardware Included: Yes
  • Mounting Hardware Material: Stainless Steel
  • Overvoltage Protection: Built-In
  • Product Type: LP9 Racer Edition LED Light Pod
  • Secondary Amerage Rating (A): 1.520
  • Secondary Brightness (Lumens): 2302
  • Secondary Light Quantity: 6 LEDs
  • Secondary Lighting Type: LED
  • Secondary Lighting Technology: Integrated Peripheral Technology (IPT)
  • Secondary Wattage (W): 21
  • Terminal Connector: DT06-4S Deutsch
  • Terminal Type: Mating Connector
  • Universal or Specific: Universal
  • Wattage (W): 132.480
  • Wiring Harness Included: No
