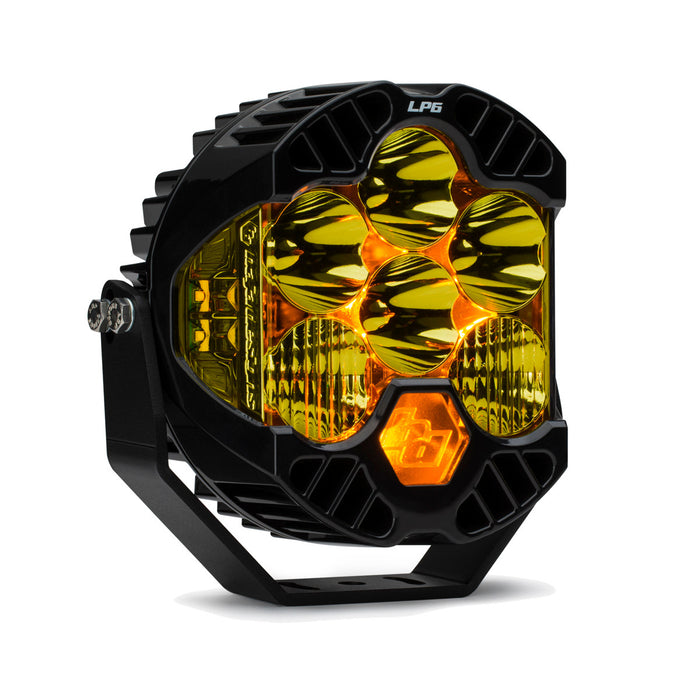

Baja Designs LP6 Pro LED Auxiliary Light Pod | Universal

SKU 270003
Original price $489.95 - Original price $499.95
Original price
$489.95 - $499.95
Current price $489.95


The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.


Vehicle Fitment

Universal Fitment


May have lead time or ships from manufacturer
May have lead time or ships from manufacturer
May have lead time or ships from manufacturer
May have lead time or ships from manufacturer



Baja Designs Features

  • Satisfactions Guarantee: 30 Day Money Back Guarantee
  • Limited Lifetime Warranty: Complete Purchase Protection
  • uService®: Replaceable Lenses And Optics
  • ClearView®: All The Light, Right Where You Need It.
  • MoistureBlock™: Waterproof, Rain Proof, Submersible
  • CopperDrive®: Only LED Driven At 100%
  • 5000K Daylight: Less Driver Fatigue, Natural Color


  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).
  • Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

  • LP6 Pro LED Auxiliary Light Pod

Specifications (Per Light)

  • Amperage Rating (A): 7.500
  • Average Rated Life (hr.): 49,930
  • Backlight Amperage Rating (A): 0.300
  • Backlight Wattage (W): 4.140
  • Beam Pattern: Spot
  • Bezel Material: Billet Machined Aluminum
  • Brightness (Lumens): 11225
  • Description: Spot; Clear
  • Housing Color: Black
  • Housing Material: Hard Anodized Machined Aluminum
  • Lens Color: Clear
  • Lighting Modes: Hardcoated Polycarbonate
  • Lens Material: High Beam/Low Beam/Day-Time Running Backlighting
  • Light Quantity: 1
  • Lighting Quantity: 6
  • Lighting Type LED
  • Lighting Technology: Forward Projecting
  • Mounting Hardware Included: Yes
  • Mounting Hardware Material: Stainless Steel
  • Overvoltage Protection: Built-In
  • Product Type: LP6 Pro LED Light Pod
  • Secondary Amerage Rating (A): 1.000
  • Secondary Brightness (Lumens): 1972
  • Secondary Light Quantity: 4 LEDs
  • Secondary Lighting Type: LED
  • Secondary Lighting Technology: Integrated Peripheral Technology (IPT)
  • Secondary Wattage (W): 15
  • Terminal Connector: DT06-4S Deutsch
  • Terminal Type: Mating Connector
  • Universal or Specific: Universal
  • Wattage (W): 103.500
  • Wiring Harness Included: No
